ZSTAT Car Audio

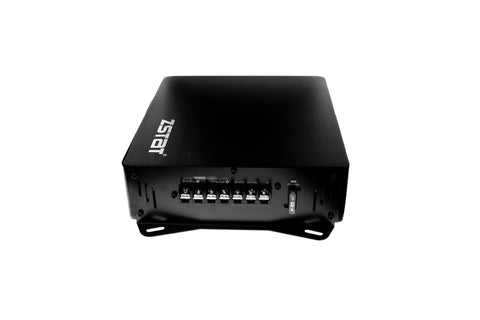

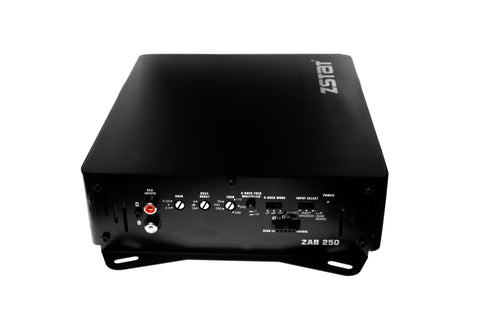

ZAB250
The ZAB250 is a small foot print AB designed amplifier which is stable at 4 ohms mono and 2 ohms stereo.
|
4 Ohm Stereo: 2 x 50 Watts |
|
2 Ohm Stereo: 2 x 100 Watts |
|
4 Ohm Bridged: 1 x 200 Watts |
|
2 Ohm Bridged: Not Recommended |
|
THD%: <.05% |
|
Frequency Response: 20Hz ~ 20kHz |
|
Signal-to-Noise Ratio (A wtg): 100dB |
|
Separation: >75dB |
|
Transient Dist: <.01 |
|
Input Sensitivity: 250mV ~ 2.5V |
|
Bass Boost: + 18 dB @ 45Hz |
|
Crossover (Butterworth): 55Hz ~ 5.5kHz @ 12dB stereo |
|
Max Current Draw: 28 Amps |
|
Damping Factory: >300 @ 1kHz |
